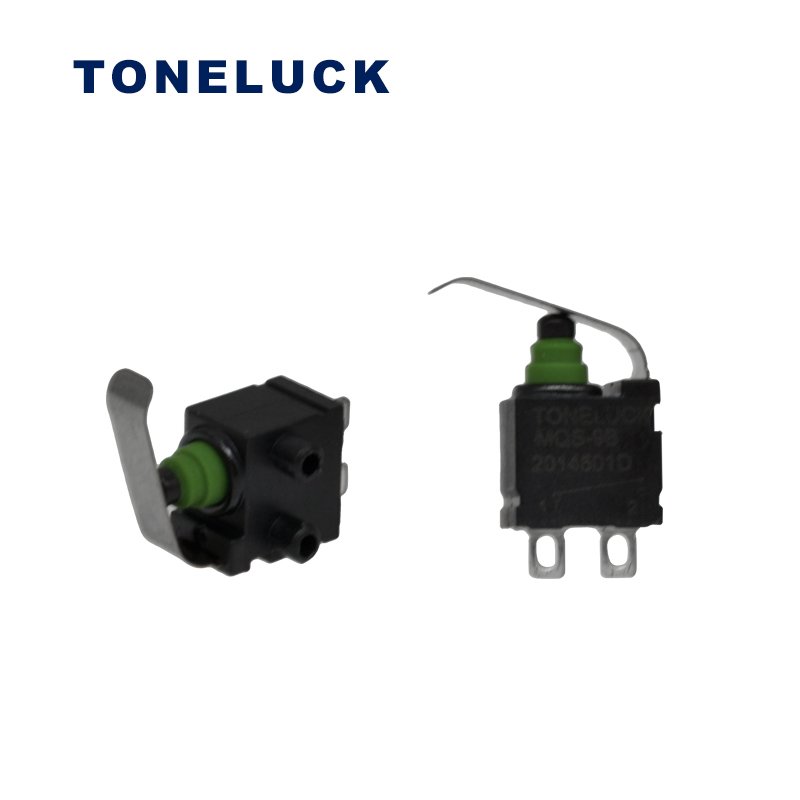

Toneluck Micro Switch nearby MQS-9B

This is a miniature sub-miniature microswitch from Toneluck, which was founded in 1976. It is SPST NO type with a metal lever. 1~50mA/5~16VDC

MQS-9B series micro switch
Product name: MQS-9B1AD03-A2
Product applications: Smart homes such as multi-function telephones, large-scale mixing consoles, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.

Category: MQS-9B Waterproof Mini Micro Switch Brand: Toneluck

Description

Sub Miniature Microswitch Details Description

This is a miniature sub-miniature microswitch from the Toneluck group, which was founded in 1976. It is SPST NO type with a metal lever and solder terminal. Meanwhile, the electrical rating is 1~50mA/5~16VDC, which is certificated by UL, ENEC, CQC, and so on. The MQS-9B is a long-life micro switch, for example, the mechanical cycle is 500000cycle.

Besides, the actuator and the switch structure are sealed with a waterproof function. So, it can work in a wet working environment.

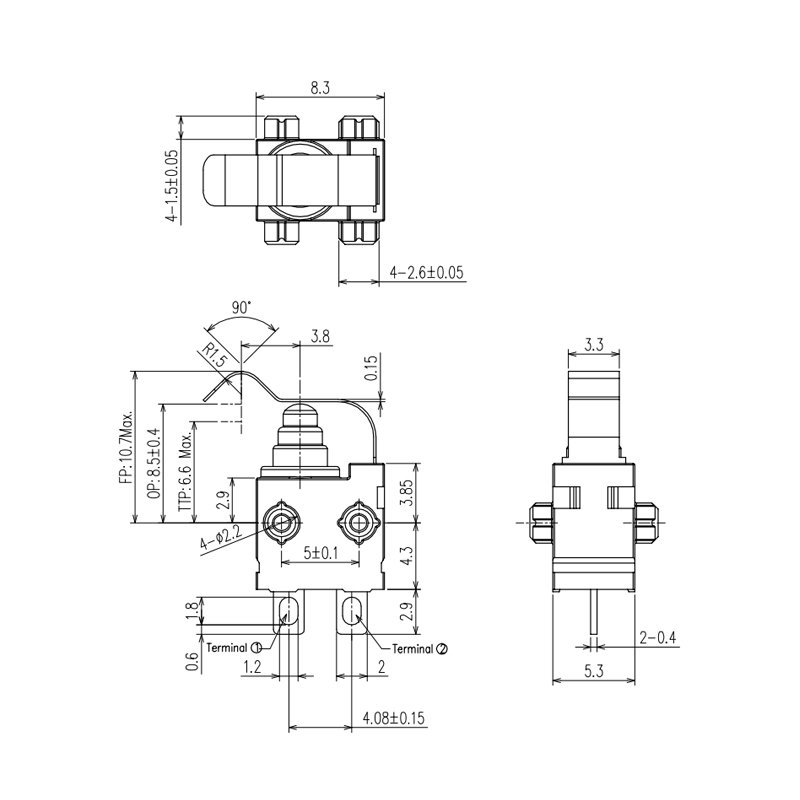

MQS-9B1AD03-A2 Microswitch Specification

Electrical Rating	10~50mA 12~24 VDC 250,000 cycles Min.
Operating Temp	-40℃ to +85℃
Mechanical Life	500,000 cycles Min.
Contact Resistance	50mΩ Max. (initial)
Operating Force	150gf Max.
Insulation Resistance	100ΩM Min.
Dielectric Strength	500VAC for 60 ± 5 sec.
Housing:	UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover)
