Details Description

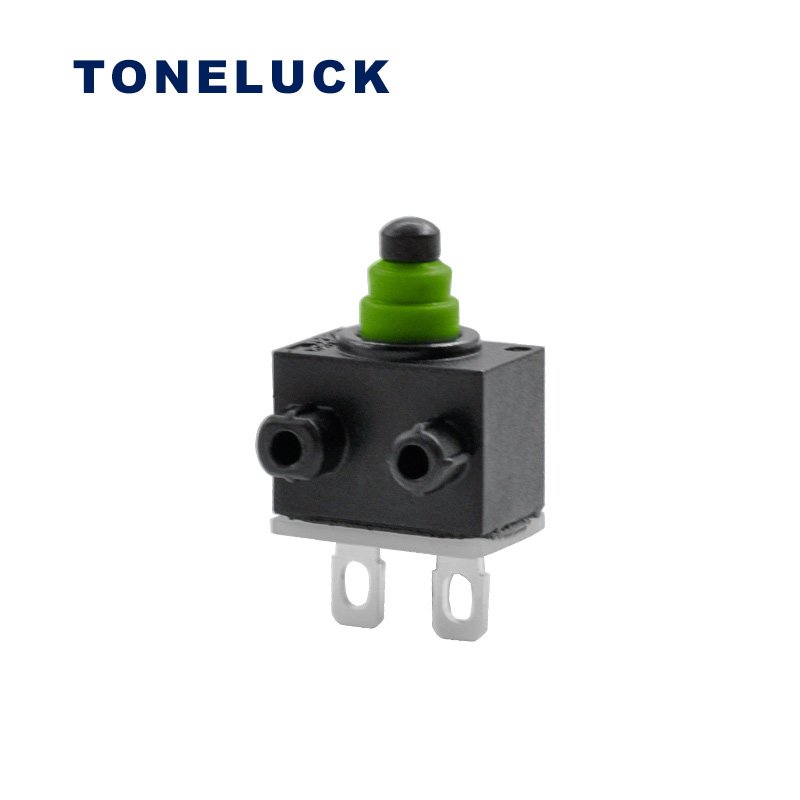

With the international delivery time problem, Toneluck MQS-9A waterproof mini microswitch is widely used to replace the Alps SPVQ8 series. But why our MQS-9A can replace the Alps and Marquardt switch is because the Toneluck was founded in 1976, with the year’s production experience, Toneluck won the trust of many customers, like the Kiekert, Magna in the auto industry.
Specification
| Electrical Rating | 10~50mA 12~24 VDC 250,000 cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
