Door Micro Switch Details Description

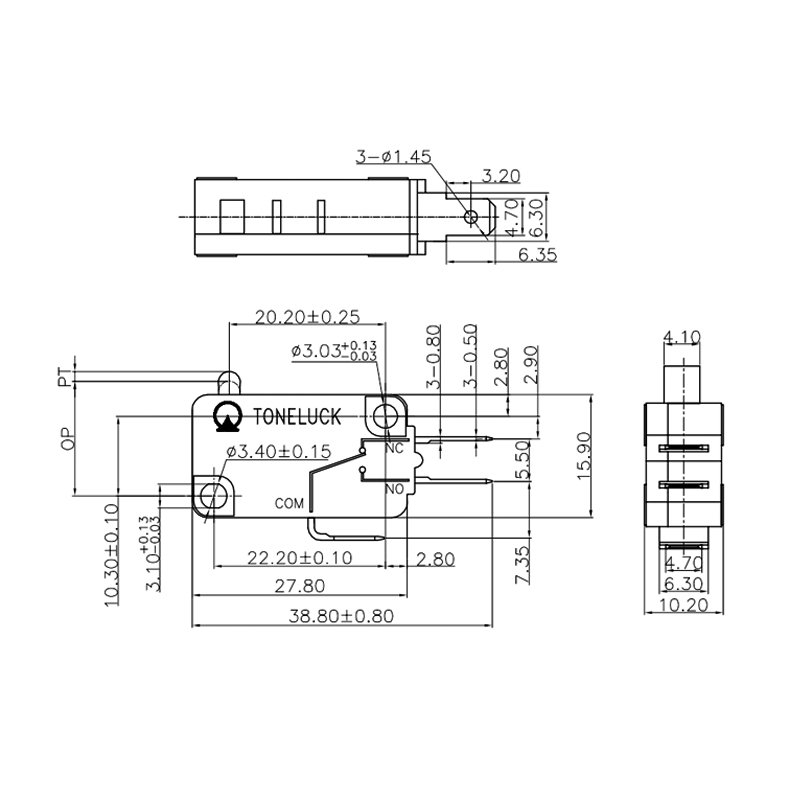

The MQS-216SN00BAL-01 is one of the door micro switches for microwave and other home appliances, which with a “16A 125/250VAC” certificated rating. Meanwhile, this model is the SPDT current code with 3 187# 187 terminals for connection, but the SPST-NO and SPST-NC are also available too.
Meanwhile, the Toneluck switches are high quality and famous in some industries, like home appliances and automotive. Generally, the different countries important the miroswitch. For example, Americas customers may need the UL certificate, Europe customers need the ENEC, Asia customers may need the CQC, and so on. In order to meet the requirement, our switches have the certification. Welcome to contact us to have more detailed information.
Besides, there are three kinds of door micro switches that are used in the microwave, the primary switch, secondary switch, and monitor switch. If you need to understand the microwave switch principle, welcome to click the article link to see it.
Specification
| Model No. | MQS-216SN00BAL-01 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 16A 125/250VAC;1/2HP 125VAC;3/4HP 250VAd
0.4A 125VDC;0.2A 250VDC;10.1A 125VL 16 (4)A 125/250VAC |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 1000VAC for 60 ± 5 sec. |
| Housing | UL 94V-0 Thermoplastic |
| Contact | Silver |
| Lever Type | Without Lever |
| Operation Force (OF) | 100±25gf |
| Release Force (RP) | 20gf Min. |
| Operation Position (OP) | 14.7±0.5 mm |
| Over- Travel (OT) | 1.25mm Min. |
| Movement-Differential (DT) | 0.4mm Max. |
| Pre Travel(PT) | 1.2mm Max. |
