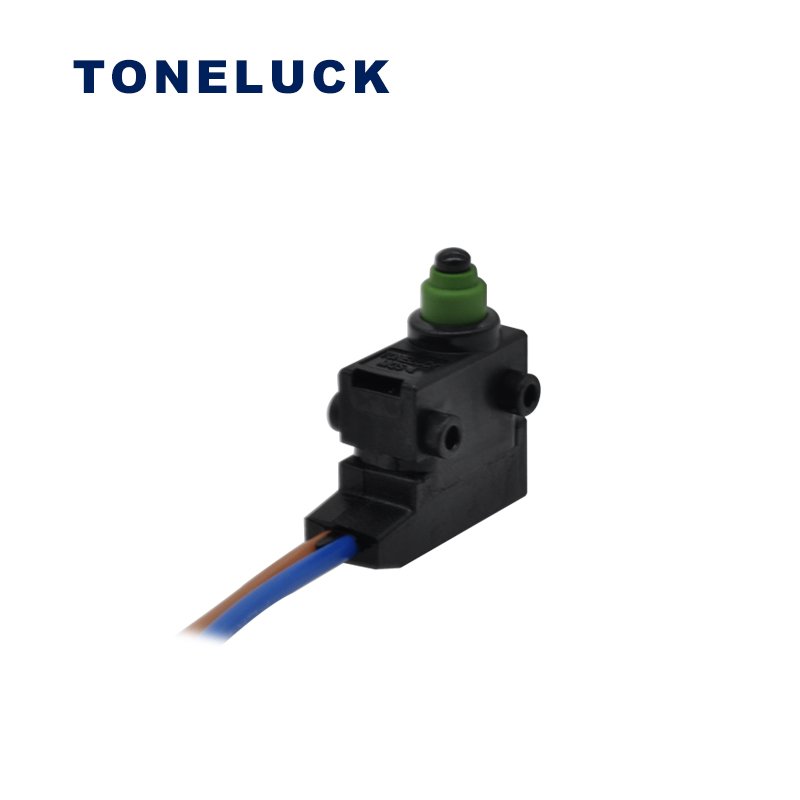

Microswitch for Caravan Tap Details Description
If you can provide the microswitch for caravan tap? Yes, we can because we are the microswitch manufacturer in China, our switches are not only suitable for it but also for many kinds of devices. Because of the DC voltage in MAX 24VDC, it is widely used in many kinds of automotive devices, electric tools, etc. Meanwhile, our mqs-4 is an IP67 waterproof rate, which can work in a wet environment.
And we can provide the free sample & datasheet to you before ordering, welcome to contact us without any hesitation.
Specification
| Electrical Rating | MQS-434CW600-AG01 |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 1000,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 200gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
| Waterproof Rate | IP67 |
