Electronic Micro Switch Normally Open NO 125V 250V 16A 40T125

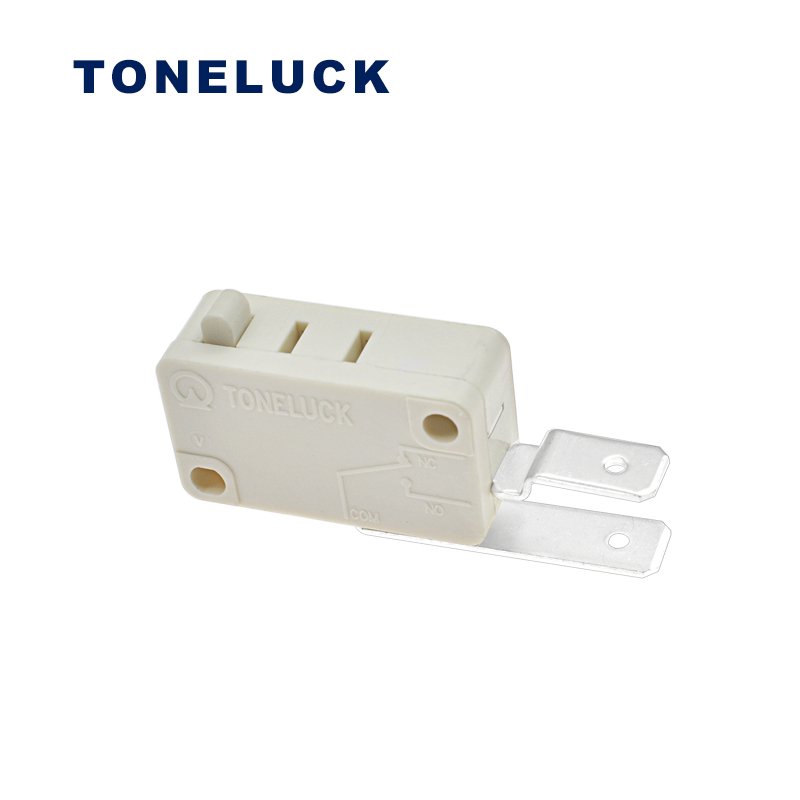

V5 Electronic Micro Switch
Product name: V52CM-15N00AG-01
Product applications: Smart homes such as multi-function telephones, large mixers, household gas appliances, washing machines, dishwashers, etc.; new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors, and other automotive markets.
Electronic Micro Switch Normally Open NO 125V 250V 16A 40T125
| Electrical Rating | 10~50mA 12~24 VDC 250,000 cycles Min. |
| Operating Temp | -40℃ to +85℃ |
| Mechanical Life | 500,000 cycles Min. |
| Contact Resistance | 50mΩ Max. (initial) |
| Operating Force | 150gf Max. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing: | UL 94 HB Thermoplastic (Base) UL 94 HB Thermoplastic (Cover) |
V5 Electronic Micro Switch
Micro Switch Normally Closed SPST 40T125 IEC 60335-1 UL 94V-0
V5 Electronic Micro Switch
