Micro Switch 24V Details Description

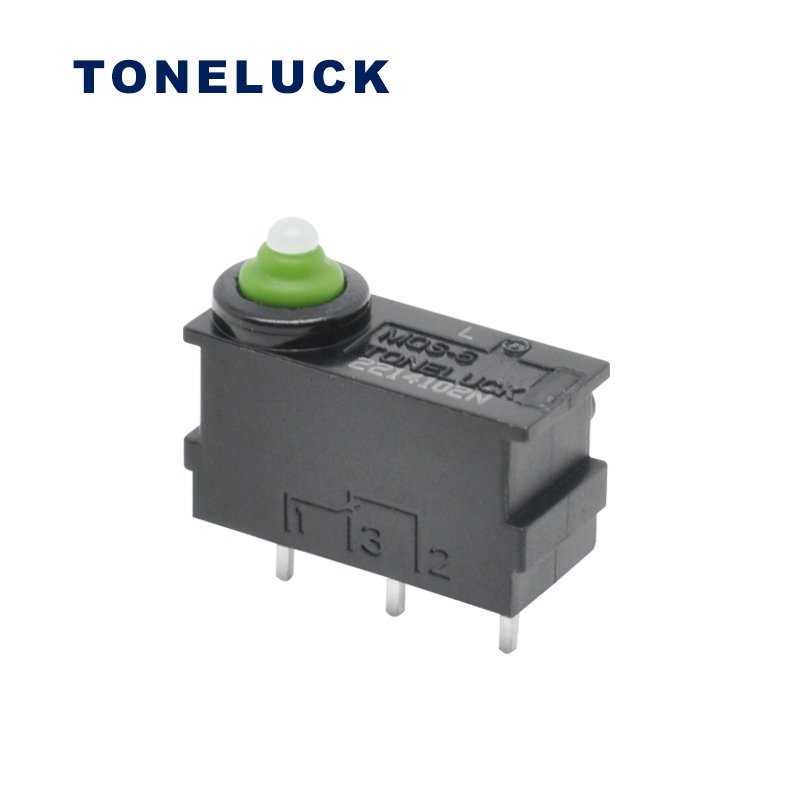

Toneluck micro switch 24VDC is a sealed switch with an IP67 waterproof protection level, which is used in automobile parts as the signal used to let the driver know if the door lock or not. However, it as well as can be used on another device only if the device needs it. Meanwhile, the MQS-624LC00-A2 model also has 3-pin PCB terminals and SPDT current code. Generally, the microswitch can be used in automotive parts that have to have high quality and long-life requirements but do not need a high-temperature or high-current material requirement. Which is different from the home household appliances microswitch. So, the shell material is UL94HB thermoplastic and the working temperature is 40T85, but the mechanical life is 500000 Min. and the electrical life is 250000 Min.
All in all, our micro switch is reliable and high-quality, welcome to contact us to have more details, thank you!
Micro Switch 24V Specification
| Model No. | MQS-624LC00-A2 |
| Operating Temperature | -40℃ to +85℃ |
| Rating | 10~50mA 12~24VDC 250,000 cycles Min. |
| Mechanical Life | 500,000 cycles Min. |
| Insulation Resistance | 100ΩM Min. |
| Dielectric Strength | 500VAC for 60 ± 5 sec. |
| Housing | UL 94HB Thermoplastic |
| Contact | Silver |
| Operation Force (OP) | 150gf Max. |
| Release Force (RP) | 20gf Min. |

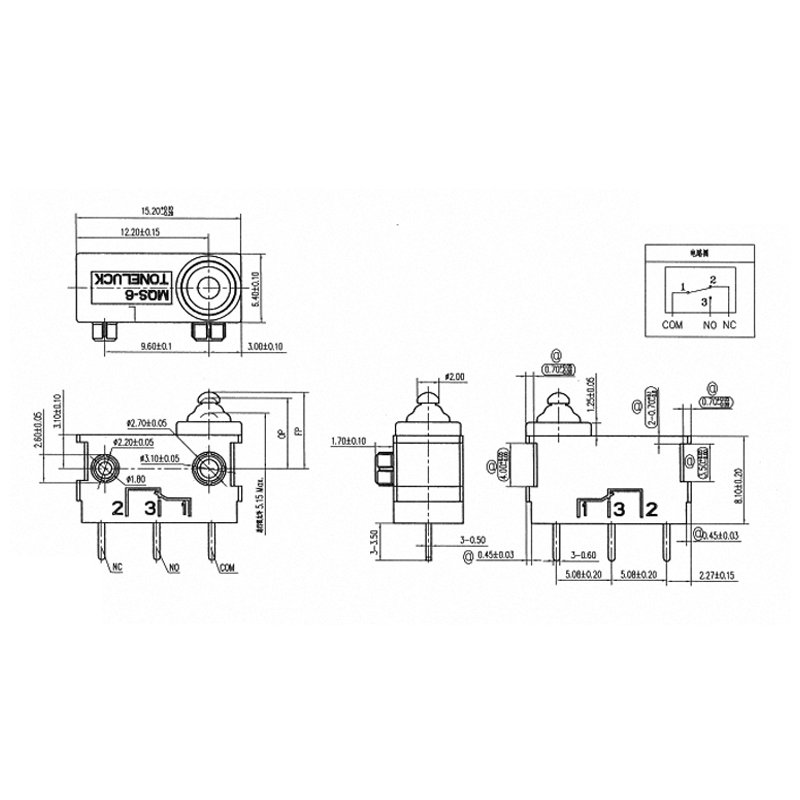

| Over-Travel (OT) | 1.3mm Min. |
| Movement-Differential (DT) | 0.3mm Max. |
| Operation Position (OP) | 10.2±0.3 mm |
| Total TP (TTP) | 2.0 mm Min. |
| Free Position(FP) | 7.2mm Max. |
